Automatic location marking buoy for sinking vessel

Automatic location marking buoy for sinking vessel

  • [ Use ]
    In the case of a shipwreck, readily locate the position of the shipwreck
  • [ Locating method ]

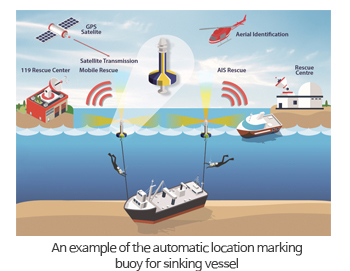

    The beacon that’s installed on the buoy will float above the water and using the light and radio waves it will transmit or mark the location of the wreckage.

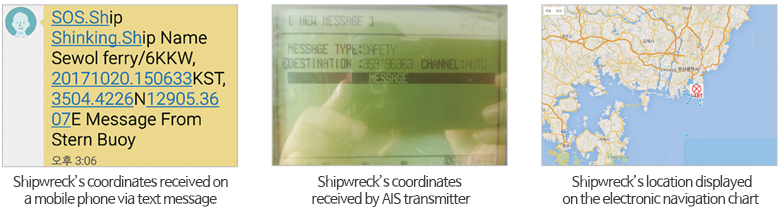

    - Send mobile text messages, using AIS to send the wreckage location, and indicate the wreckage on the ECDIS
    - Marine lantern will light up vertically and horizontally so that an aerial identification by helicopter or planes can be possible

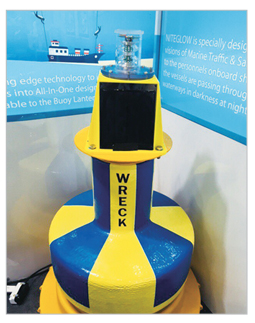

  • [ Shipwreck location marking buoy ]
    - Composition: buoy body, marine lantern, elastic mooring rope, rope release controller.
    - Place of installation: On the hull bow or stern’s available space or bridge.
    - Buoy size/ rope’s length (Water depth): diameter 400, 600, 800, 1200mm / 200m (Maximum 6,000 m)
    - Options: The size of the buoy and the rope’s length can be modified at the customer’s requested specification.
  • [ Special feature ]
    - Rope is an elastic mooring rope made with a super material; this can be used as the initial guideline for the underwater diver.
    - Other marine buoys can be used for special and lateral marks.
    ※ Patent : Korea 10-1740139(2017.5.19)
    PCT Application : PCT/KR2017/002276(2017.3.2)
