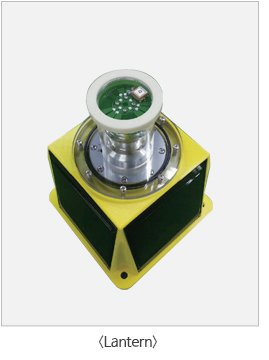

Self-Contained solar powered LED Lantern (Beacon)
- [ Use ]
Waterway guidance, indicate danger, lighted buoy to indicate a shipwreck,
light to mark obstruction to aviation, road traffic light, railroad traffic light
- [ Characteristics and advantages ]
- There is no need for a separate battery or solar power generator installa
tion (holds independent power source- solar battery and storage battery)
- Easy handling and minimize maintenance (cost savings on maintenance
and prevent accidents)
- [ Main Functionality ]
- Visible Range (NM) : 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 15 / 20 / 30
- Power: Embedded independent power source (solar panel, charge and
discharge controller and battery), self-contained structure
- Lantern/Light characteristics: Ultra-bright LED diodes/ IALA compliant
256 different characters of light that is avionic compliant, and other
compliant standards
- LED life expectancy: 100,000+ hours (15 years+ of lifetime)
- Vibration test: US Department of Defense standard MIL -STD-202G, Method 204D(5G)
- Shock test: US Department of Defense standard MIL -STD-202G, Method 213B
- Ingress Protection test: IP68
- Operating temperature: -20 ~ +70 (MIL -STD -810E, 501.3 (High temperature), 502.3 (Low temperature)
- Humidity test: US Department of Defense standard MIL -STD-810E, 507.3 (Humidity)
- Option: Simultaneous flickering, waterway marker AIS, WCDMA remote surveillance function, report surveillance
function using APP
- [ Automatic location signaling function for sinking vessel ]
- Light beam divergence: Vertical, horizontal (visible from the surveilling aircraft)
- Light color: Red, Blue, satisfies alternating IALA standard
- Location transmission method: Uses waterway indicator AIS SART, sends text messages to the appointed
mobile phone number (119, 911, coast guard, vessel owner, etc)
